Hot-dipped galvanized 3d welded wire mesh panel welded galvanized wire mesh panels
YW011
minimum order
100 meters
Supply Ability
40000.0meters / Day
Country of Origin
Tianjin
Quantity
Hot-dipped galvanized 3d welded wire mesh panel welded galvanized wire mesh panels
Product Description

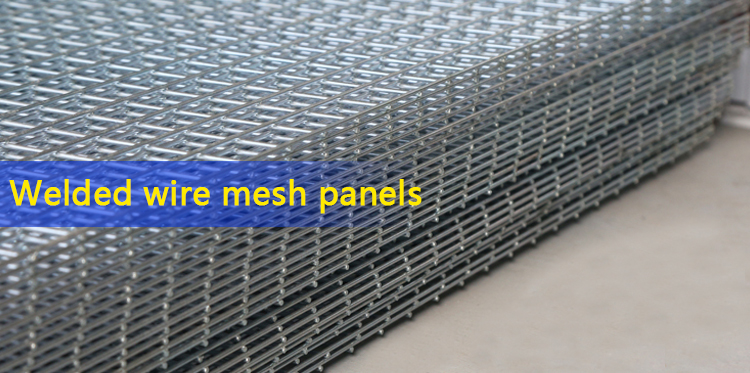

Welded wire mesh panelis a mesh made of high-quality low-carbon steel wire that has been straightened and cut and then welded by electric welding equipment. Welded wire mesh panel is widely used because of its simple structure, fast production, beautiful and practical, and easy to transport.

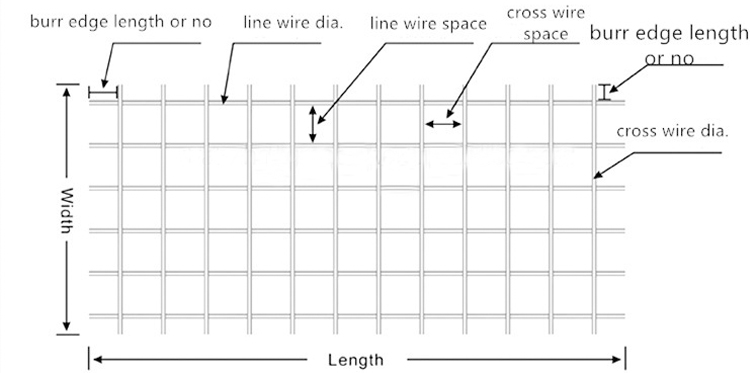

Specification | ||
| Opening | Wire Diameter | |
| Inch | metric Unit(mm) | |
| 1"x1" | 25mmx25mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x2" | 50mmx50mm | 2.5mm,2.0mm,1.8mm,1.6mm |
| 2"x3" | 50mmx70mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 2"x4" | 50mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
| 2"x6" | 50mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 2"x8" | 50mmx200mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 3"x3" | 75mmx75mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
| 3"x4" | 75mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
| 4"x4" | 100mmx100mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 5"x5" | 125mmx125mm | 6.0mm,5.0mm,4.0mm,3.0mm |
| 6"x6" | 150mmx150mm | 6.0mm,5.0mm,4.0mm,3.0mm |
Technical Note: | ||
1.Standard Panel Length:0.5m-5.8m;Width:0.5m-2.4m 2.Special size available at request | ||

Welded Wire Mesh for Fences
Electro galvanized welded wire mesh
Hot dipped galvanized welded wire mesh
Plastic coated welded wire mesh
Stainless steel welded wire mesh
Product Display
